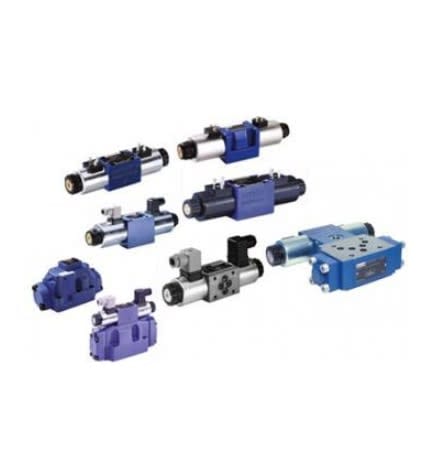

Name: solenoid operated hydraulic directional control valve
Brand: made in china
SKU: Directional valve

+880 1713-798987ceo@nurengineering.bd.com

NOTICE:★ কোন পার্টস স্টকে না থাকলে জরুরী প্রয়োজনে অর্ডার দেওয়ার ০৩ কার্যদিবসের মধ্যে চায়না থেকে আমদানি করে সরবরাহ করা হয় ★NOTICE:★ We can supply out of stock products within 3-4 working days by importing the items from china for your urgent requirements ★NOTICE:★ কোন পার্টস স্টকে না থাকলে জরুরী প্রয়োজনে অর্ডার দেওয়ার ০৩ কার্যদিবসের মধ্যে চায়না থেকে আমদানি করে সরবরাহ করা হয় ★NOTICE:★ We can supply out of stock products within 3-4 working days by importing the items from china for your urgent requirements ★

+880 1713-798987

Nur Engineering Solution

Machine, spare parts and Technical service provider

Loading catalog…

solenoid operated hydraulic directional control valve | Nur Engineering Solution | Nur Engineering Solution

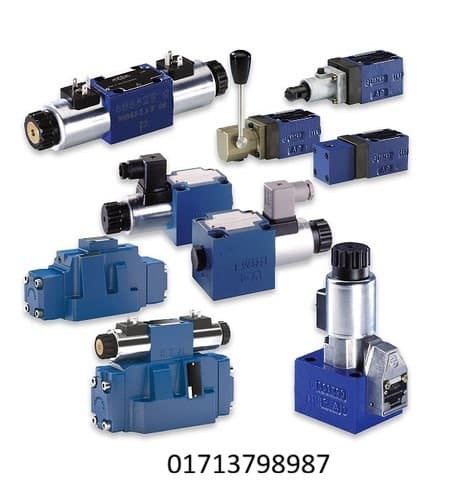

A hydraulic solenoid-operated directional control valve uses an electrical current through a solenoid coil to shift an internal spool or poppet, controlling the start, stop, and direction of pressurized fluid in industrial machinery, mobile equipment, or agricultural systems. Solenoid operated Hydraulic directional valve available in Nur Engineering Solution in Dhaka Bangladesh. DSG-03-3C2-24V , DSG-02-3C4-24V , DSG-02-3C6-D24 , DSG D24 N220 2B3B A220 How It Works • Electromagnetic Actuation: When the electrical coil is energized, it creates a magnetic field that pulls an armature, sliding the internal spool or poppet from its resting position. • Flow Direction: Shifting the spool opens or closes internal passages (ports like P for pump, T for tank, and A / B for actuator lines), routing fluid to extend or retract a hydraulic cylinder or rotate a motor. • Return Mechanism: • Spring-return (single/double solenoid): When power is cut, internal springs push the spool back to a neutral or null position. • Detented / Double solenoid without springs: The spool stays in its last shifted position until the opposite solenoid is energized. Common Types & Configurations • By Number of Ways and Positions: • 2-Way Valves: Open or close a single flow path. • 3-Way Valves: Typically used to control single-acting cylinders. • 4-Way Valves: Manage double-acting cylinders or reversible motors by swapping pressure and tank connections between two working ports (e.g., 4/3 or 4/2 configurations). • Direct-Operated vs. Pilot-Operated: • Direct-Operated: The solenoid acts directly on the main spool, ideal for smaller flow rates (commonly up to around 20–38 GPM on standard NFPA/CETOP D03 or D05 patterns). • Pilot-Operated: For high flow rates (100+ GPM), a small solenoid valve (pilot) uses system pressure to shift a large main spool. Key Resources & Standards • Explore components and hardware options via Hydraulics Online or technical specs through manufacturers like Sun Hydraulics and Continental Hydraulics. If you are troubleshooting or selecting a valve, let me know: • What is the flow rate (GPM or L/min) and maximum system pressure (PSI or bar)? • Is it for a single-acting or double-acting cylinder/motor? • What voltage (e.g., 12V DC, 24V DC, 110V AC) are you working with?
